A06B-6290-H206

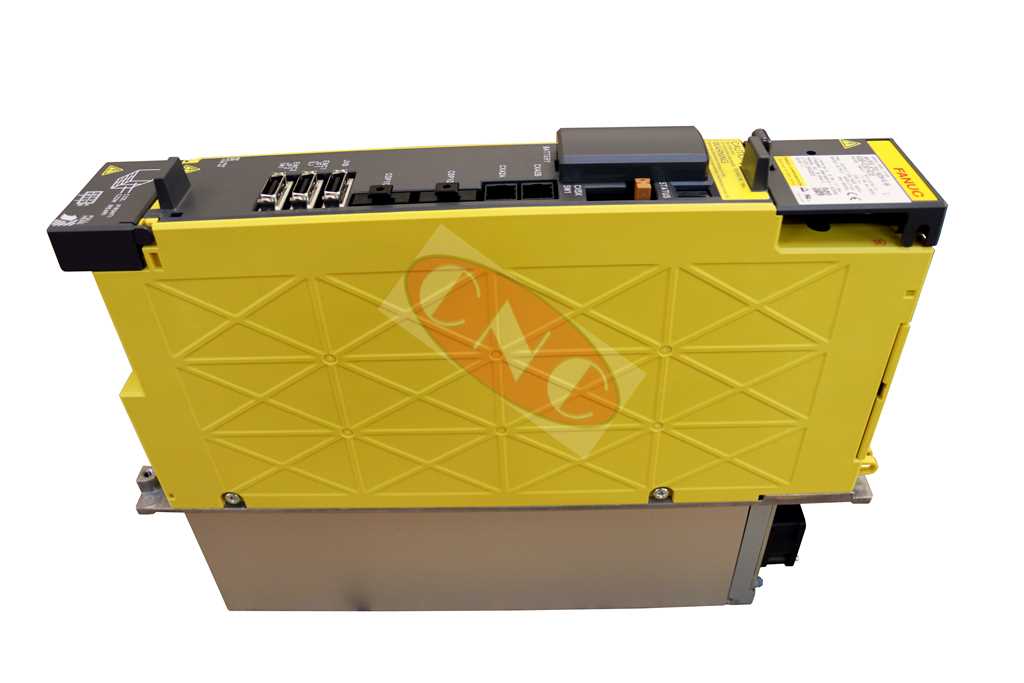

A06B-6290-H206 ¦ aiSV 20/40HV Servo Module

Fanuc ALPHA series A06B-6290-H206 servo drive services available at CNC. CNC offer testing, repair and exchange services for this ALPHA i generation Fanuc servo module aiSV 20/40HV or aiSV 20/40HV-B which unlikle the aiPS and aiSP is correctly labelled as a servo module.

Part of the 62xx wave of 400 VAC amplifiers. Fitted with any combination and ratings of spindle modules and powered from differing power supply’s dependent on machine size and type.

Repair and testing facilities are offered for Fanuc ai FSSB servo amplifiers, including closed loop with Fanuc oi-F system and ai series drives and motors. Occasionally CNC may have surplus to exchange requirement stock available. Though normally only exchange stock is available for most of the 62xx series of Fanuc ai drive amps.

Fanuc released two versions of these H206 modules. The early version contains power pcb A20B-2101-063x and control pcb A20B-2101-089x; with the later changing boards, etc. Namely the aiSV 20/40HV which runs on earlier controls and later aiSV-20/40HV-B for the 0i model For 3xi model B controls. They are not compatible!

CNC offer a warranty on all A06B6290H206 drives supplied either exchange or if they have been repaired at CNC’s facilities. If you are struggling to ascertain if this module is at fault then consult our ALPHA i servo module alarms page.
