A06B-6150-H060

A06B-6150-H060 ¦ Power Module aiSP-60HV (lvl up)

Fanuc A06B-6150-H060 power supply module is in stock. Second generation of ALPHA i series PSM-30HVi supply exchange, testing and repair with comprehensive testing capabilities available on this level up HV power supply module from the ai generation.

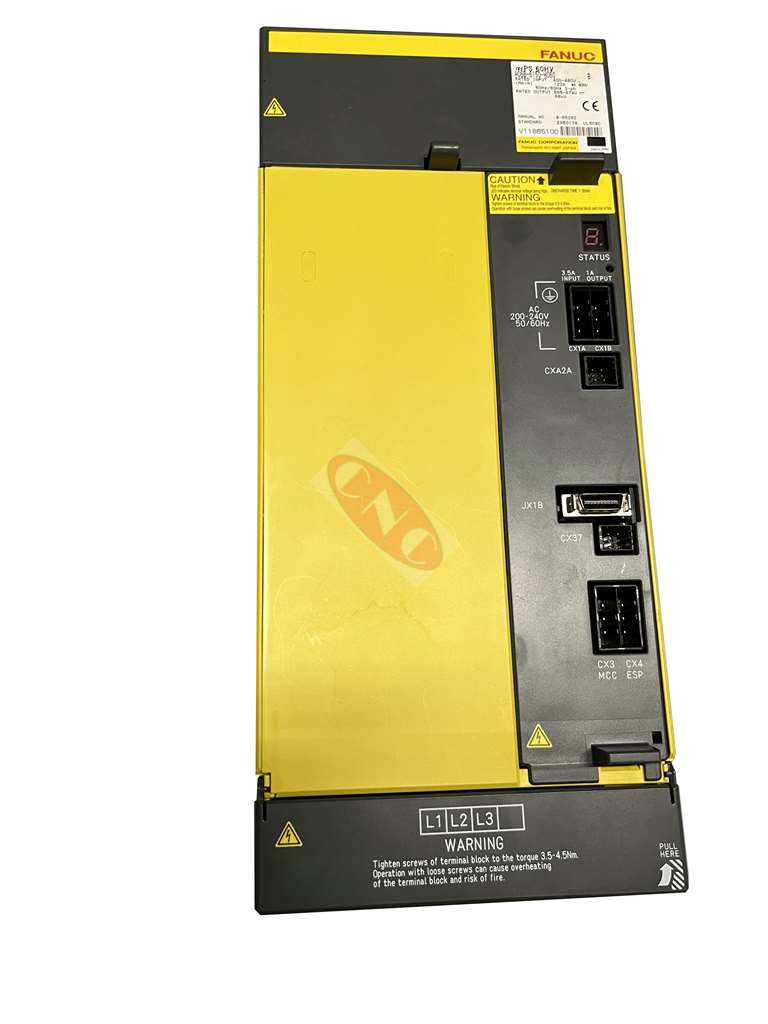

The aiPS-60HV is a 150mm wide power module fitted with external heatsink and both internal and external fan. Powering 400VAC high voltage rated spindle module and a single dual channel or combination of servo amplifier modules.This PSM is normally twinned with 6151/6152 spindle amps with #H580 software.

This drive is rated at 70kW and contains three 1200v transistor modules. Fitted with the wiring board A20B-200x-064x and control card A20B-2101-039x. None of the boards are available separate, but transistors, battery pack, fuses and the internal fan are.

CNC prices for A06B-6150-H060 is based on what service you require. Our most popular is service exchange; in which we supply you a fully refurbed unit, tested with warranty on a swap basis for your faulty module in complete, economically repairable and non interfered with condition.

Alternatively we offer extensive testing and repair facilities offering a cheaper option to exchange. Lastly if stocks permit then outright sale of refurbished or power supply modules.

All of the ALPHA i power supplies are tested with a full drive system and accompanying motors on either our series 0i-C and 0i-D control systems. If you are unsure if your aiPS-45HV is indeed faulty then check our alarm page for ALPHA power supply module.
