A06B-0314-B004

A06B-0314-B004 ¦ 5S, Tapered with 2000 INC

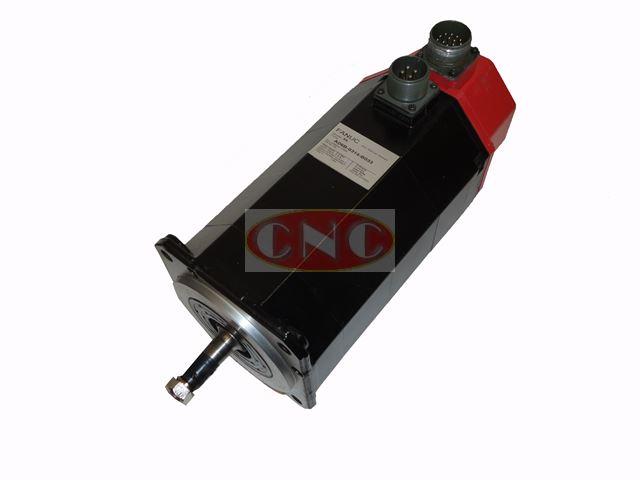

Fanuc A06B-0314-B004 AC servo motor. This second generation AC red cap motor is part of the S series of digital AC servo, spindle amplifiers and motor series. The drives powering the motors were all digital using PWM. This motor is a standard configuration fitted on hundreds of different machine tools. Electrical rate of 5.9Nm TRQ, 5.8 Amp, 3 phase 126V, maximum RPM of 2000.

This motor has a tapered shaft. Fitted with standard oil seals and incremental pulse coder unit. Similar to other 0314 series motors this is the first release with red cap 2000 pulse encoder with inter coupling.

CNC offer fully refurbished motors with warranty on an exchange basis (assuming in stock). Testing, fault diagnosis of the A06B0314B004#7000 is possible. Rebuild and overhaul possible – needs to be inspected by us to price accurately. May work out more cost effective with lost production time to go for exchange.

12 month warranty on 5S motors if supplied surplus, exchange or repaired.
