A06B-0313-B510#7073

A06B-0313-B510#7073 ¦ 0S with STR V-Cut (Cincinnati)

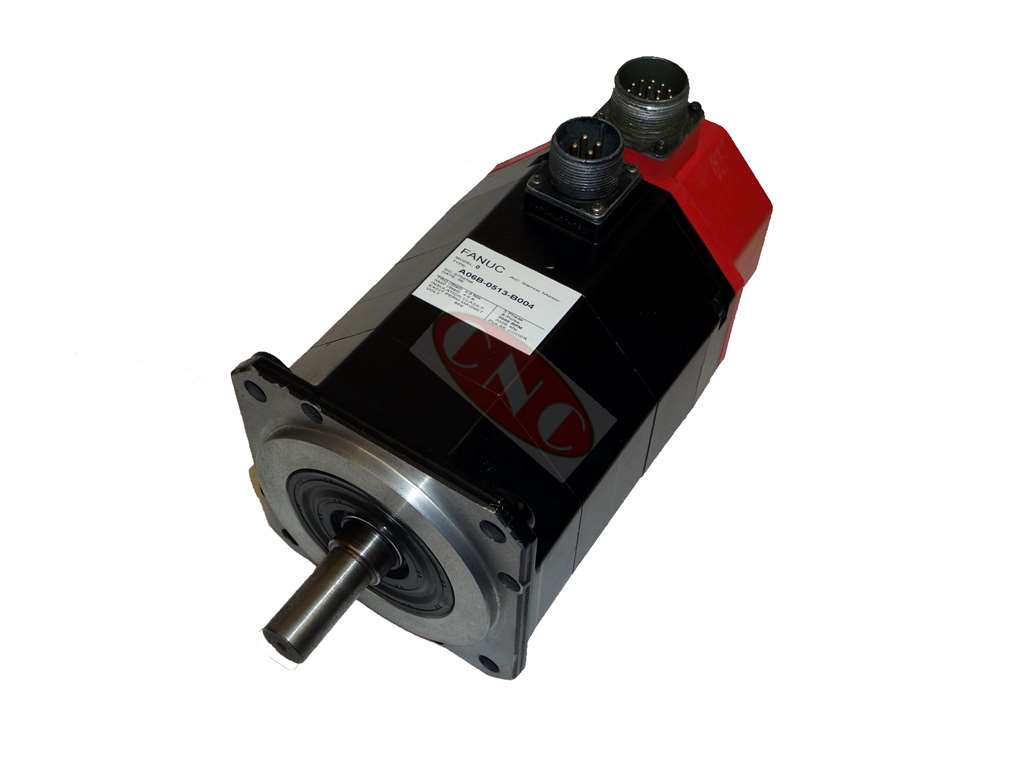

Fanuc A06B-0313-B510#7073 AC servo motor. This AC red cap motor is part of the S series of digital AC servo, spindle amplifiers and motor series. The drives powering the motors were all digial using PWM. This motor is a special being manufactured for Cincinnati Sabre CNC machine tools. Electrical rate of 2.9Nm TRQ, 4.2 Amp, 3 phase 127V, max RPM of 2000.

This motor has a straight shaft with a special V-CUT for the Cincinnati coupling to fit. Fitted with standard oil seals and a 10000 pulse encoder. Similar to other 0313 series motors this is the latter second release with red cap Hi-Res encoder with interconnect (dog) rather than black screw coupling.

CNC offer fully refurbished motors with warranty on an exchange basis (assuming in stock). Testing, fault diagnosis of the A06B0313B510#7073 is possible. Rebuild and overhaul possible – needs to be inpsected by us to price accurately. May work out more cost effective with lost production time to go for exchange.

12 month warranty on 0S motors for Cincinnati machines if supplied surplus, exchange or repaired.
