A06B-0313-B010

A06B-0313-B010 ¦ 0S, Tapered with Hi-RES

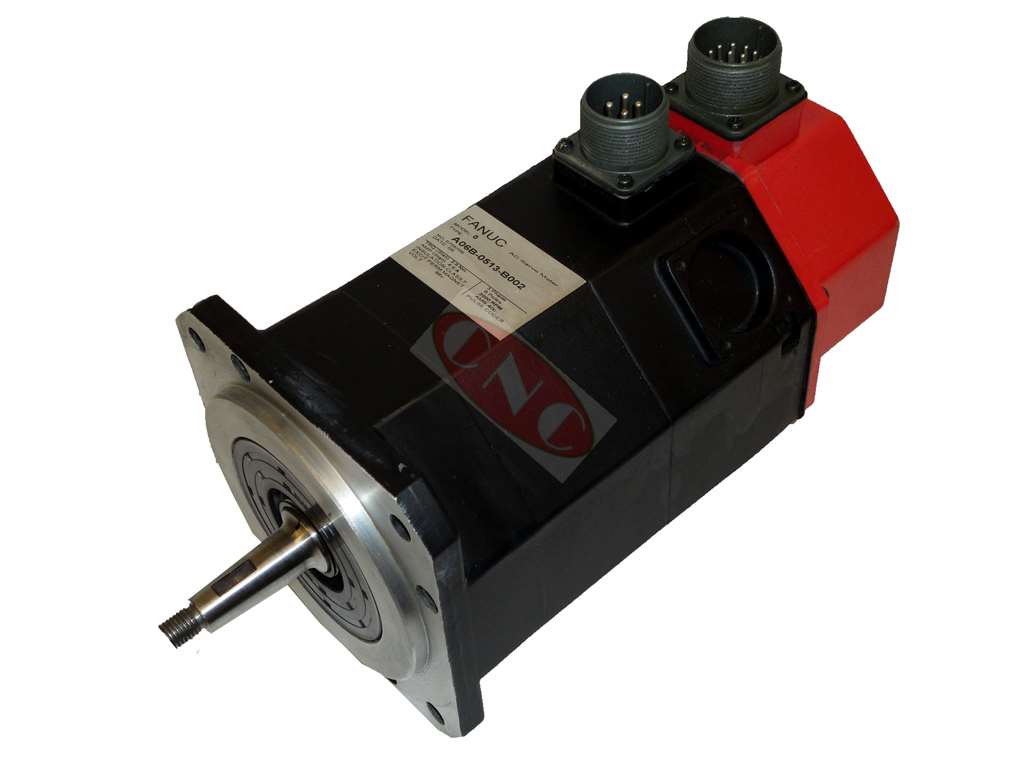

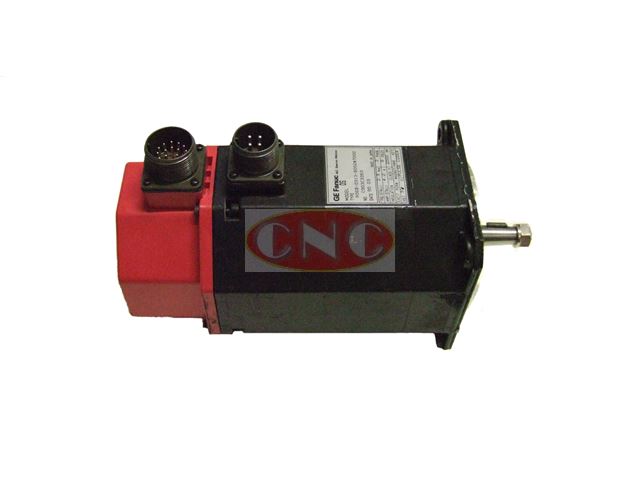

Fanuc A06B-0313-B010 AC servo motor. This AC red cap motor is part of the S series of digital AC servo, spindle amplifiers and motor series. The drives powering the motors were all digial using PWM. This motor is a standard configuration fitted on hundreds of different machine tools. Electrical rate of 2.9Nm TRQ, 4.2 Amp, 3 phase 127V, max RPM of 3000.

This motor has a tapered shaft. Fitted with standard oil seals and a red Hi-Res pulse encoder. Similar to other 0313 series motors this is the second release with 10000 pulse coder using intercoupling  (dog) system.

CNC offer fully refurbished motors with warranty on an exchange basis (assuming in stock). Testing, fault diagnosis of the A06B0313B010 is possible. Rebuild and overhaul possible – needs to be inpsected by us to price accurately. May work out more cost effective with lost production time to go for exchange.

12 month warranty on 0S motors if supplied surplus, exchange or repaired.
