A06B-6088-H155

A06B-6088-H155 ¦ SPM-55 (Type IV) Spindle

Fanuc A06B-6088-H155 spindle amplifier module. CNC stocks ALPHA series SPM-55 available for exchange.

This amplifier uses the type 4 interface (simpliest of the four interface types). Model 55 rated output of 66kW normally found driving model a50 or high speed AC spindle motor with MZ/CZ ALPHA sensor feedback.

The drive has the following internal boards; power pcb A20B-1007-059x or A20B-1006-069x, firing board A20B-2002-008x and control card A16B-2202-0435; fitted with software 9D00 or 9D0A. None of the boards are available seperate. We only supply the complete H155 amplifier. However we supply transistor modules, fuses, fans when stock permits.

Please note these SPM-55 (Type IV) have a #H50x suffix which denote different software: namely #H500 or #H501 listed as follows:

• A06B6088H155#H500
• A06B6088H155#H501

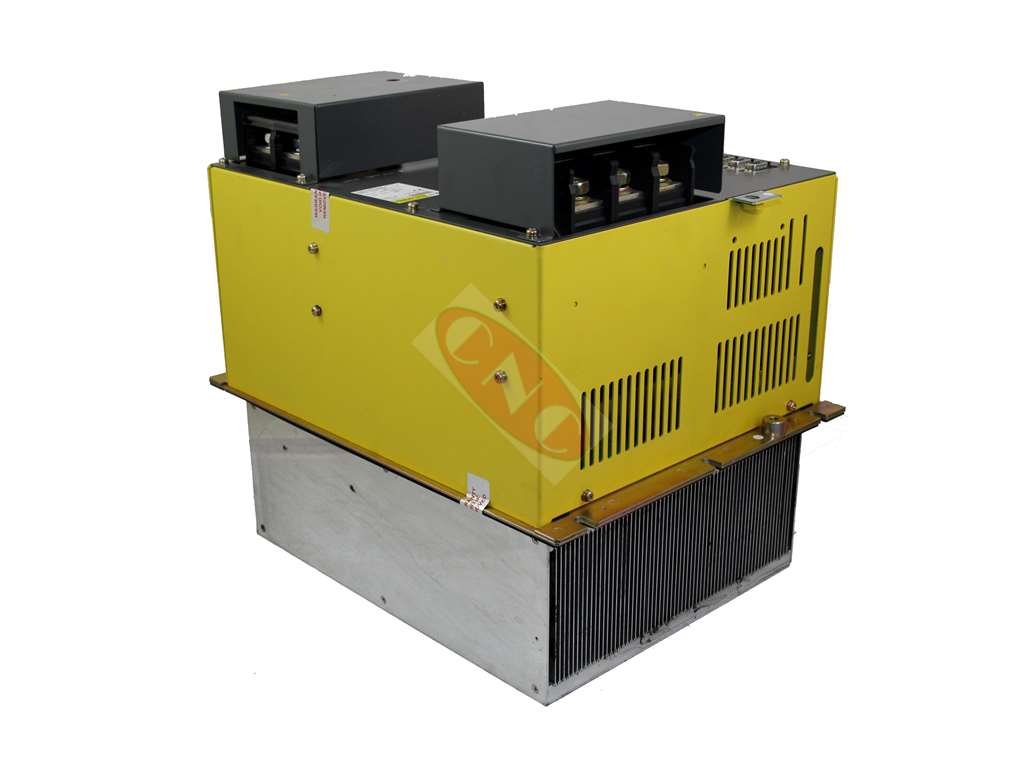

Please let us know which versions of this drive as these are incompatible to each other due to added or reduced functionality. At 300mm wide this spindle module has a twin set of both internal and external cooling fans and external heatsink. The drive also has a twin seven segment LED display which illumantes when the drive is powered and shows various states of the amplifier. Please visit our ALPHA spindle module alarms page for the meanings of the alarms, codes, errors listed on your amplifier.

If required full testing and repair services are available. CNC offer all work in house and do not outsource any repairs, or testing off your or any ALPHA SPM-55 spindle module outside the group.

In summary for quick delivery of SPM-55 order service exchange or for a cheaper option then our fast turnaround repair service may suit your needs. At CNC we endeavour to repair modules once the go ahead is given within 48 hours.

However if you are desperate to get your machine back up and running then exchange is always the fastest route.
